EDD-24T

Electronic Device Detector EDD-24T
Detects all types of electronics - whether active, passive or even switched off.

Handheld Non Linear Junction Detector (NLJD)

EDD-24T Video

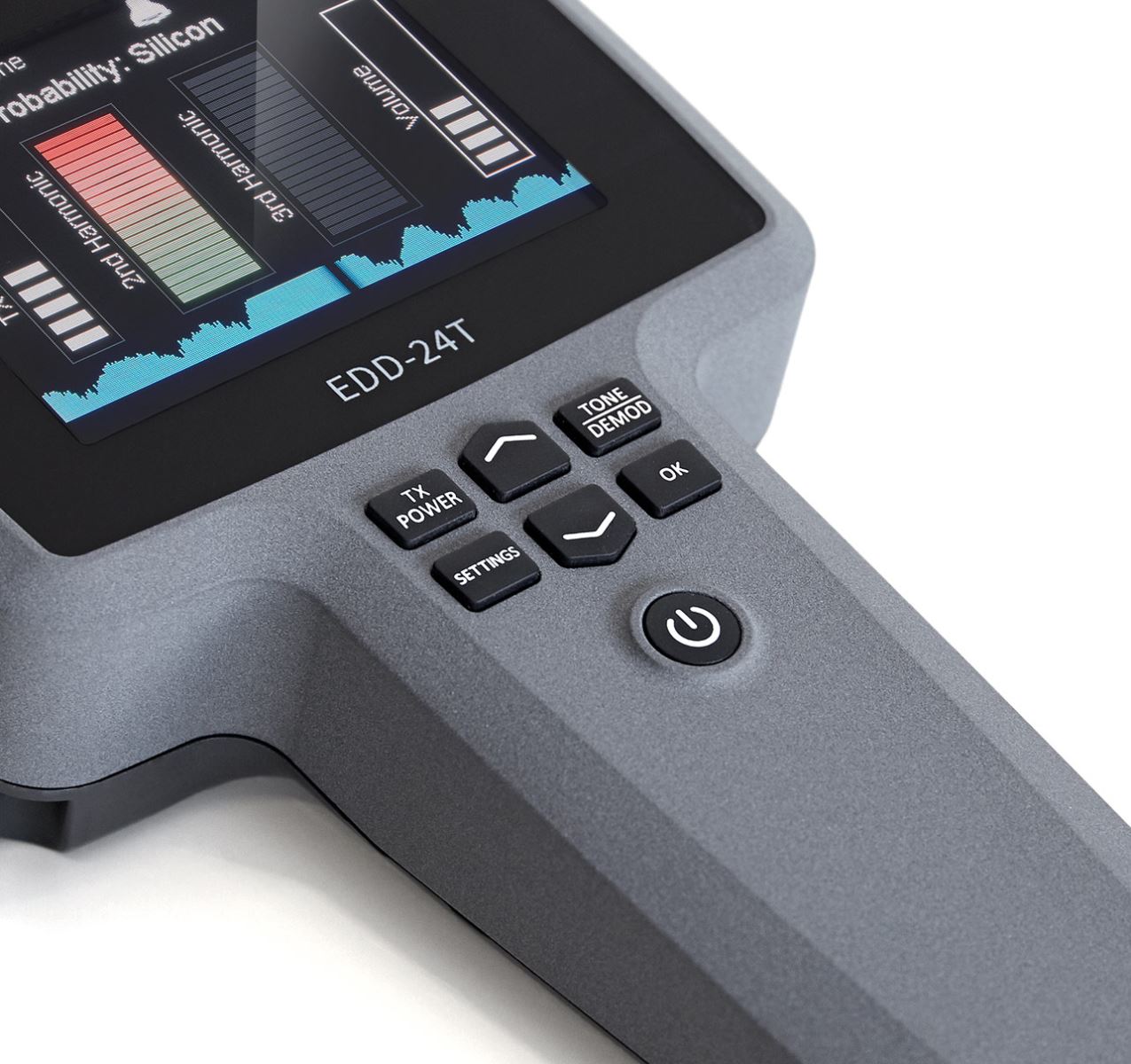

The New EDD-24T is a Handheld Non Linear Junction Detector (NLJD). It detects all types of electronics - whether active, passive or even switched off.

The EDD-24T is a compact handheld Non Linear Junction Detector or NLJD. It will detect the presence of semiconductor circuits that are used in all modern electronic devices such as mobile phones, tracking devices, listening devices, covert cameras, digital voice recorders, SIM cards etc. Importantly, the EDD-24T will detect such devices whether they are switched on and in use, powered on but in standby mode, or even switched off without any power.

DATASHEET GALLERY

image image image image image image image image

Product Features

Non-linear Junction Detector

Detect Dormant Devices

3.5" TFT
Screen

Memory Function

Ultra-Sensitive

Audio Tone/Demod

Internal Lithium Battery Pack

Machined Aluminium Enclosure

Heavy Duty Military Standard Carry Case

Principle of operation

Semiconductor Electronics are used in all modern electronics and are made using Silicon substrates. When high frequency radio signals are transmitted directly over silicon it produces a strong second harmonic frequency of that radio signal. Other materials such as some bi-metals or oxidised metals can respond with a third harmonic signal.

The EDD-24T transmits a focused directional signal on 2.4 GHz (ISM Band Type B). It receives on 4.8GHz (Second Harmonic) and 7.2GHz (Third Harmonic).

The highly sensitive receiver will respond to any signals produced on the 2nd Harmonic by even the smallest piece of Silicon such as that used in SIM Cards, Mobile Phones, Bugging Devices, Voice Recorders, Covert Video cameras etc. Importantly those devices do not have to be in use, in standby or even have any power connected to them to be detected.

The 3rd Harmonic receiver acts as a valuable confirmation for signals that may be ambiguous or are not a threat such as those in oxidised metals, bi-metals etc.

Probability Indicator

To allow even an inexperienced user to make a quick assessment of a detected signal the EDD-24T uses an intelligent algorithm to analyse the detected signals from both the 2nd and 3rd Harmonic Receivers and evaluate the probability of material being detected as ‘Silicon’ or ‘Metal’.

Audio Confirmation

The EDD-24T Can provide audio confirmation of detected signals in two ways, through the internal loudspeaker or earphones.

TONE Mode can be used to provide an audible tone of a detected signal on the 2nd Harmonic only. This enables the user to search without looking at the display screen. The TONE changes in pitch according to the strength of the detected signal.

DEMOD Mode can be used to listen to an actual demodulated signal of the 2nd Harmonic Receiver. When no signals are detected a random audible ‘Click’ sound will be heard. In some cases when Silicon is detected the click level will reduce or become completely silent.

The EDD-24T is genuinely portable for handheld use and weighs just 750g. It is encased in a machined aluminium enclosure for ultimate durability with a tough plastic antenna cover. The internal Lithium Polymer battery pack gives up to 4.5 hours of use from one charge. The whole package is supplied in a compact military standard carry case for ultimate protection and portability.

The EDD-24T is designed, manufactured and tested in England to highest technical standards.

Supplied in package

EDD-24T Handheld Electronic Device Detector - Weight 700g
Charger - 110V to 240V AC input (Auto Switching) with International Adaptors Output 5V DC 2A
Earphones
Compact Military Standard Carry Case

Features

Handheld Non Linear Junction Detector (NLJD)
Detects all types of electronics - whether active, passive or even switched off
Easy to operate with an intuitive user friendly interface
2.4 GHz Transmit - 4 Watts
2nd Harmonic (4.8 GHz) and 3rd Harmonic (7.2 GHz) Receivers
As powerful and sensitive as much larger so called ‘portable’ units
Detected material Indicator ‘Silicon’ or ‘Metal'
Will even detect the latest NANO SIM cards from up to 20cm.
Audible Tone and Demodulation Function through speaker or earphones
Battery life up to 4.5 hours
Weight just 700g
Machined Aluminium Enclosure with Moulded Plastic Antenna Cover
Supplied in a Military Standard carry case

BACK TO PRODUCTS

The EDD-24T is a compact handheld Non Linear Junction Detector or ‘NLJD’ designed specifically for professional countermeasures use (TSCM).
