New Product

WAM-X25+

Wireless Activity Monitor

Designed for the TSCM Professional

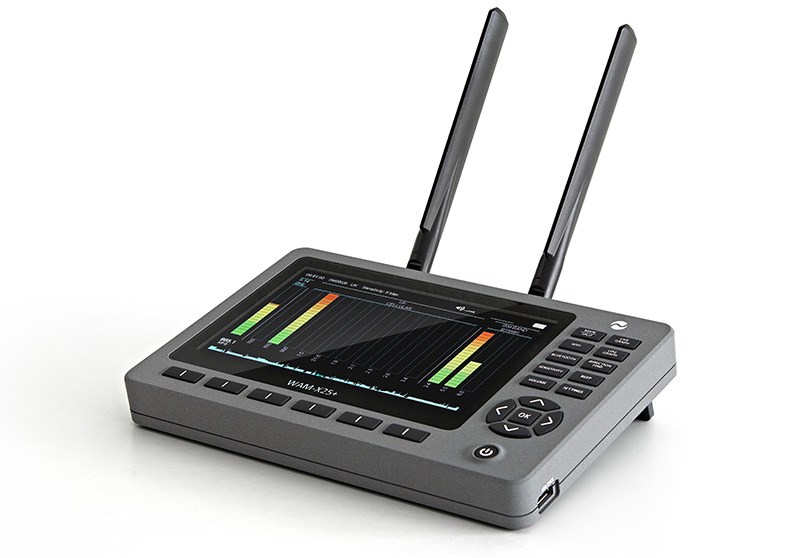

The WAM-X25+ Wireless Activity Monitor is a compact tablet-style, multi-band Radio Frequency (RF) signal detector for handheld or desktop use. It is designed for detection and logging of transmissions from all types of radio frequency devices.

WAM-X25+ Video

See the new WAM-X25+ Wireless Activity Monitor in action. Detecting Cellular 2G/3G/4G/5G, 2.4GHz/5GHz Wi-Fi/Bluetooth, Wideband 0-14 GHz. Plus a new Wi-Fi Network/Bluetooth Analyser and Direction Find Function. All in a compact tablet sized package.



The WAM-X25+ Wireless Activity Monitor is a compact tablet-style, multi-band Radio Frequency (RF) signal detector for handheld or desktop use. It is designed for detection and logging of transmissions from all types of radio frequency devices.

The WAM-X25+ provides complete coverage and logging of all RF activity in the surrounding area.

Wideband Detection

The 0-14 GHz Wideband detector provides the highest range of coverage of all RF activity in the target area. The frequency of the detected signal (up to 6GHz) can be seen simultaneously and the ‘Livescan’ software shows the detected live signal pattern graphically to help identify the signal type. This can be particularly useful when searching for pulsing or burst devices such as GPS trackers.

Worldwide Cellular Band Detection

The WAM-X25+ has separate Worldwide multiband Cellular coverage. Simply select the international region the device is being used in and the WAM-X25+ will detect signals from all the relevant local cellular bands. This means the WAM-X25+ is ready for the rollout of the latest 5G devices, worldwide. Of course, all existing 2G, 3G and 4G bands will also be covered. It can be used in any environment where cellular devices are forbidden such as sensitive meeting rooms to check for hidden devices, unauthorised mobile phone usage in offices, exam halls, hospitals, or prisons and in vehicles to locate the latest Vehicle/Asset tracking devices. All cellular activity is logged and can be reviewed at a at any time, graphically or in list format. The WAM-X25+ also has a separate band for detection of Satellite phones using L-Band (1.6 GHz)

2.4 GHz, 5GHz & 6GHz Wi-Fi Detection

The WAM-X25+ has a separate 2.4 GHz, 5GHz & 6 GHz bands for detecting the rapidly growing threat from Wi-Fi/Bluetooth/Video and other latest generation ‘Store & Forward’ devices. Such devices can for example, record audio over long periods and then transmit it in short regular bursts. It will also detect other devices that use these bands such as covert wireless video transmitters.

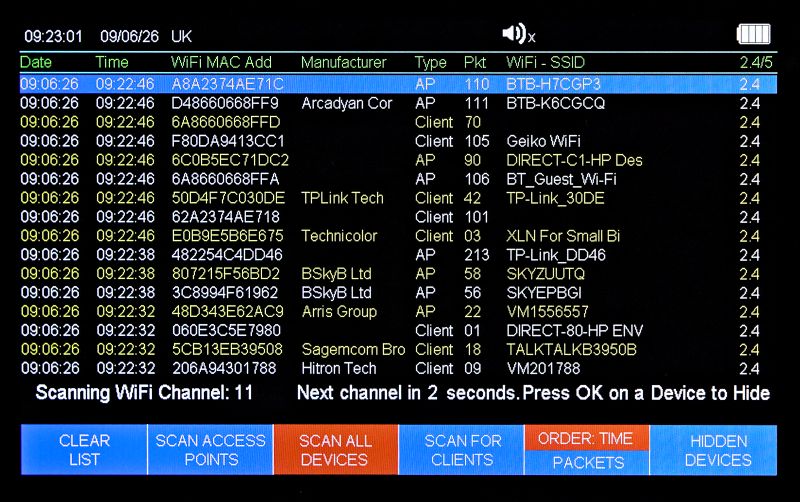

Wi-Fi Network Analyser

The WAM-X25+ features a new Independent Wi-Fi Network (2.4 & 5GHz) Analyser to provide detailed activity information about WLAN networks in the surrounding area such as Hotspots, Routers, Wi-Fi cameras etc.  The device will scan through detected Wi-Fi Access Points/Clients and compile a detailed list of information: Date & Time of Event, Wi-Fi MAC Address, Manufacturer (If available), Type (Access point or Client), Number of Data Packets detected, Wi-Fi SSID (If available) and band (2.4 or 5 GHz)





Bluetooth Device Analyser

The WAM-X25+ also features a built-in Bluetooth analyser to list nearby active Bluetooth devices such as AirTags (and other Beacon devices), Smartphones, Tablets, headphones, fitness trackers etc. Information gathered includes: Event Date & Time, Bluetooth MAC Address, Manufacturer (If available), Signal Strength in dBm & number of Data Packets detected.

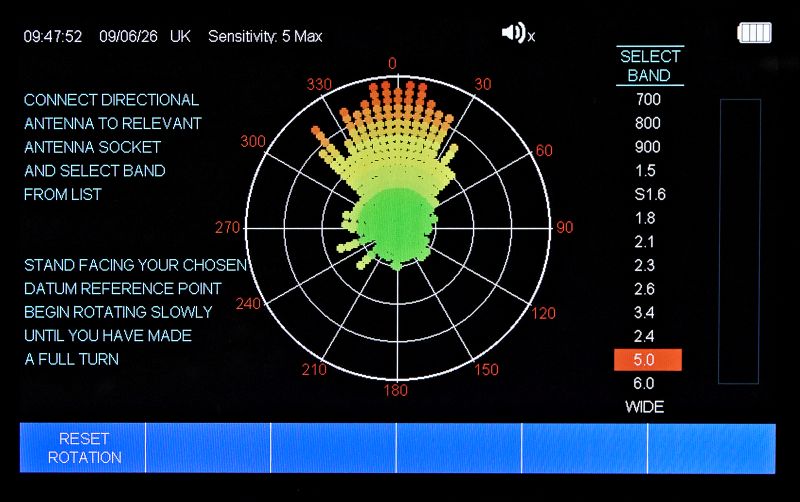

Direction Find Function

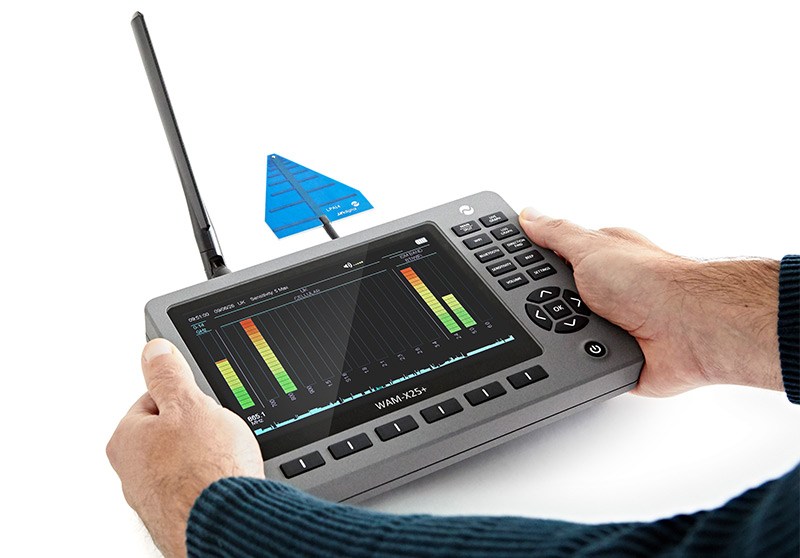

The new direction find mode enables the user to locate the source of a detected RF signal by rotating the WAM-X25+ through 360 degrees using the supplied directional antenna. By slowly rotating the unit, signal strength information is gathered and plotted graphically over 360 degrees to give the user an accurate indication of the detected signal source.

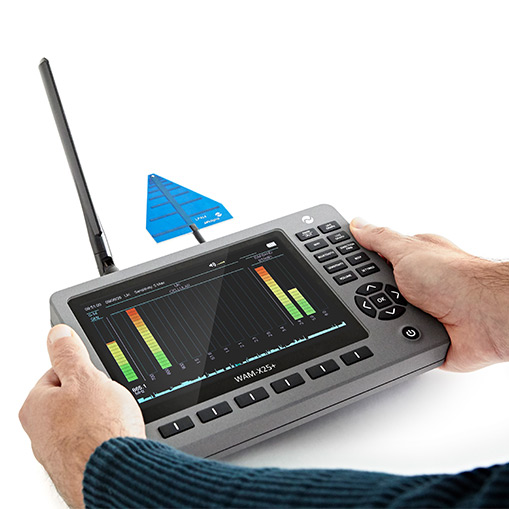

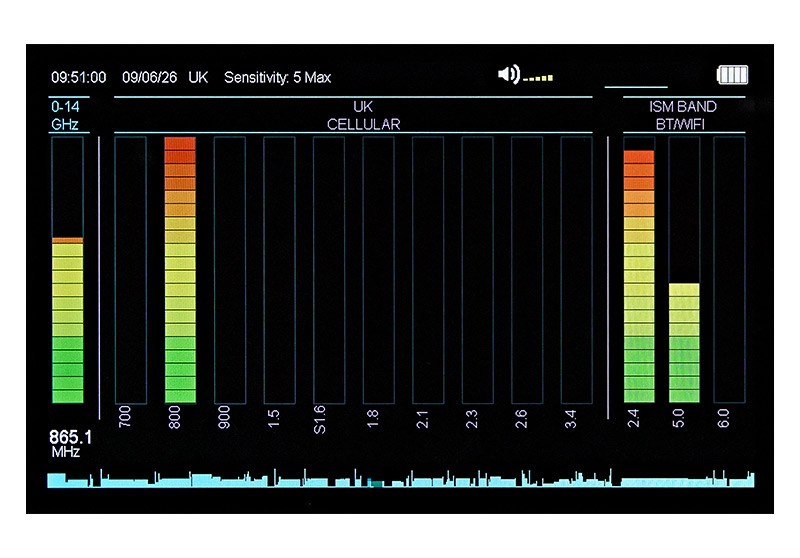

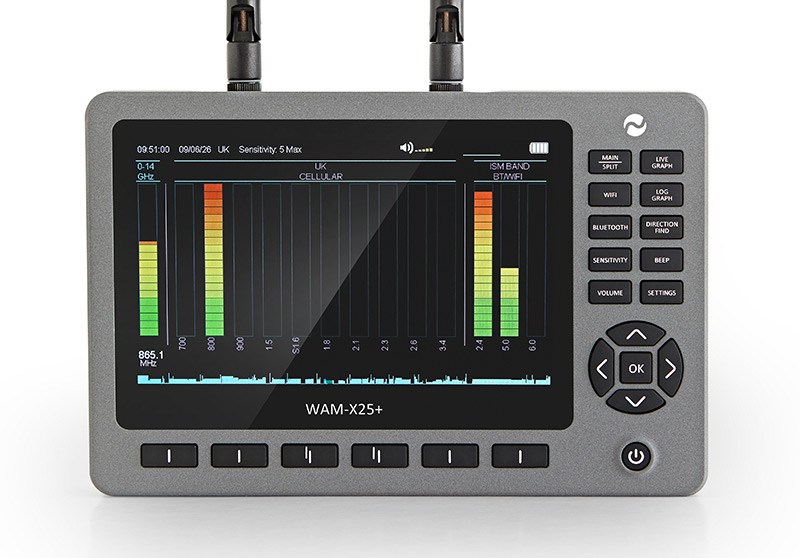

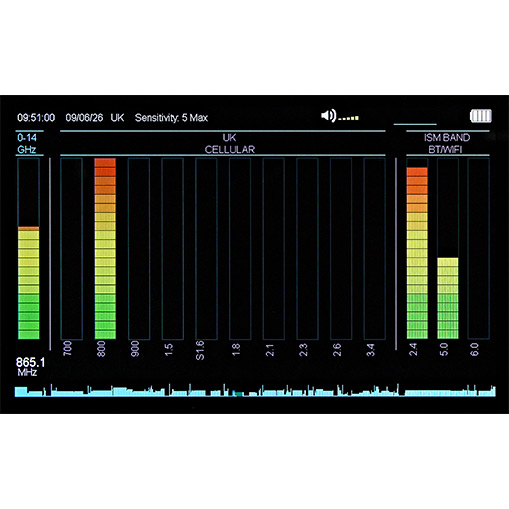

A new keypad design means operation is simple and intuitive. All information is displayed on a high resolution colour 7-inch TFT screen that allows the user to simultaneously perform real time detection and to view events that have previously occurred. Each band has an individual 20 element signal strength meter enabling the precise source of a detected signal to be located with ease. An audible ‘Beep’ mode allows the user to monitor without looking at the display and a silent Vibrate mode can also be used for particularly sensitive areas.

Up to 10,000 events can be stored within the WAM-X25+ for viewing simultaneously as a list or graphically. For each detected signal (no matter how long or short) it will record the Time/Date, Duration, Band detected and Signal strength. This can be particularly useful in identifying the type of device that is being detected. For example:  a string of regular short bursts in one particular band may represent those from a GSM/GPS Tracking device.  These could be clearly viewed in Graph Mode as lines of regular spacing representing the pulsing nature of the transmission.  Also by looking at call activity at certain times of the day may help identify unauthorised phone use in sensitive areas such as prisons, company board rooms, exam halls, etc. The entire event log can also be downloaded to a USB stick for storage or transfer to a computer where it can be viewed/sorted for analysis or reporting.

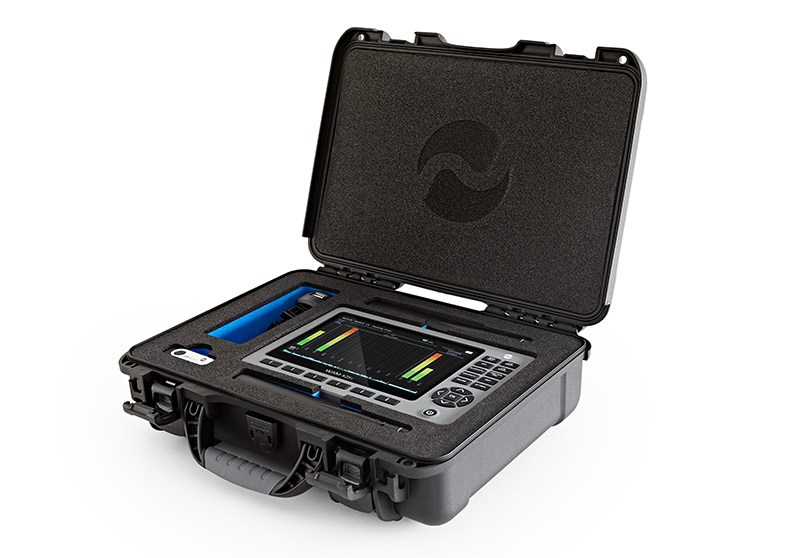

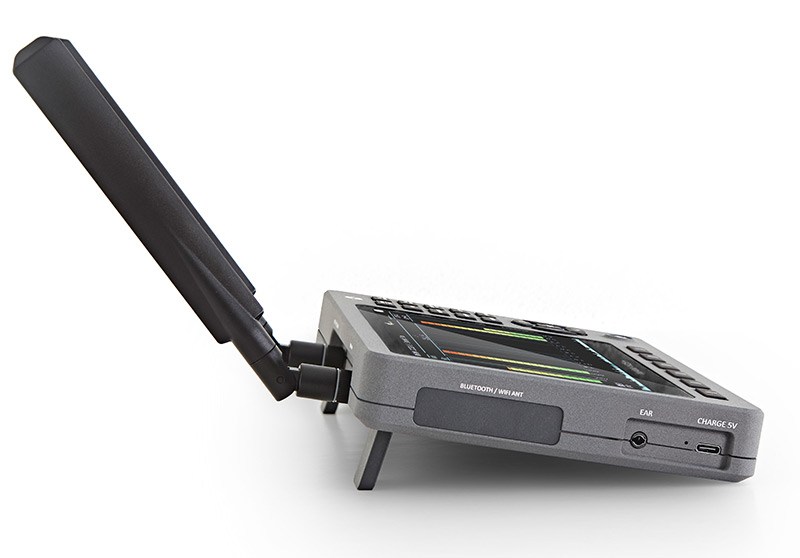

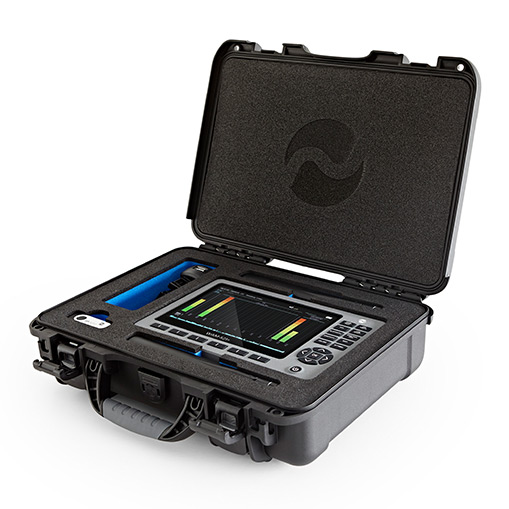

The WAM-X25+ is designed and manufactured in the UK to the highest specification and is enclosed in customised machined aircraft-grade aluminium enclosure. It uses an integral Lithium-Polymer battery pack and is supplied with an international charger. The complete system is supplied in a compact heavy-duty military standard carry case for ultimate protection.

Supplied in Package:

  • WAM-X25+ - Main Unit
  • Adjustable hinged antenna x 2 & LF Antenna 0 to 800MHz
  • Directional Antenna LPA-14-SMA (Blue)
  • 5V USB-C Charger-110V to 240V AC input (Auto Switching) with International Adaptors
  • Earphones
  • USB Memory Stick
  • High Protection Military Standard Carry Case

PRODUCT FEATURES

  • Detects 2G/3G/4G/5G devices - plus Wi-Fi/Bluetooth/2.4GHz, 5GHz & 6GHz Devices
  • Detects Mobile Phones, Smartphones, GPS Trackers, SMS (Texts), GSM Bugs, 3G/4G/5G Video, Bluetooth & Wi-Fi Devices, AirTags & other B.L.E. Devices, Store & Forward devices
  • Machined aluminium enclosure for maximum durability
  • Worldwide Cellular Coverage - Simply select the relevant region of use
  • Satellite Phone Detection – L-Band
  • Separate Wideband RF Detector 0-14 GHz
  • Wi-Fi Network Analyser provides data on nearby WLAN networks
  • Bluetooth Device Analyser provides data on nearby Bluetooth devices including Bluetooth Beacon devices such as Apple AirTags.
  • Direction Find Function for pin-pointing signal sources
  • Event Log records Time/Date, Band, Duration & Signal Strength of up to 10,000 Events
  • Log can be viewed on screen or saved to USB stick for storage/viewing on a computer
  • Graph Mode plots real time or historical graph of all detected cellular bands
